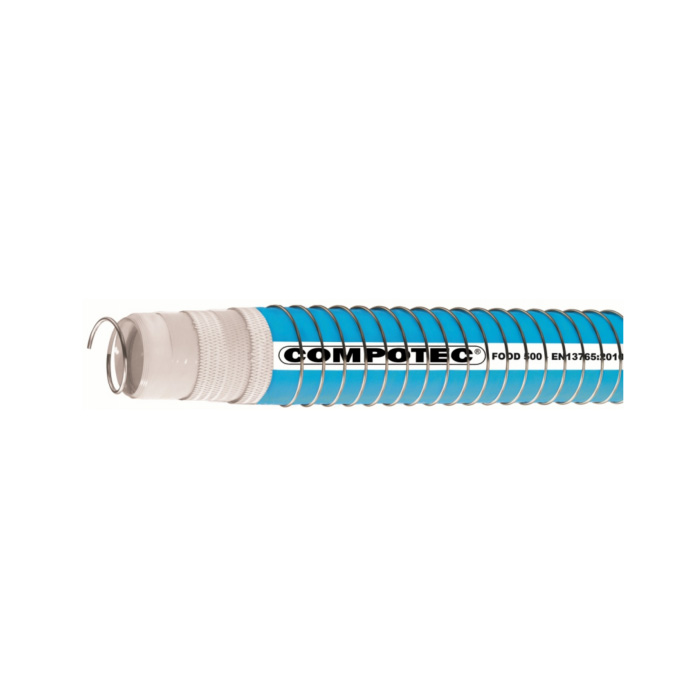

Food Grade Composite Flexible Hose

The composite hose is a hose composed of a variety of polymer materials reinforced layer, a sealing layer and an external anti-wear and anti-aging layer.

Product parameters

The composite hose is a hose composed of a variety of polymer materials reinforced layer, a sealing layer and an external anti-wear and anti-aging layer. It is wound by a computer-assisted "labyrinth" seal and fastened by internal and external spiral wire support. And it is originated from Europe and is the latest generation of safe petrochemical hose.

Structure:

Inner steel wire: SS304, SS316 wire

Composite layer: Thermoplastic film.

Outer layer: PVC coated fabric.

Outer steel wire: SS304, SS316 wire.


Inner Diameterinch-mmMax Working PressureMpaMin Bend RadiusmmWeightkg/m
1"-251.62001.40
1 1/2"-401.62001.80
2"-501.62252.25
2 1/2"-651.62253.00
3"-801.63504.20
4"-1001.64004.90
6"-1501.657512.9
8"-2001.680020.5
10"-2501.6100027.5
12"-3001.6120032.8

Product Features

Max working pressure: 1.6 Mpa

Working temperature: -30℃~+150℃

Medium: Various liquid foods, raw material, vegetable oil

● Variety of hose types: SS

● Made from food materials, healthy and safe.

● Easy to operate.

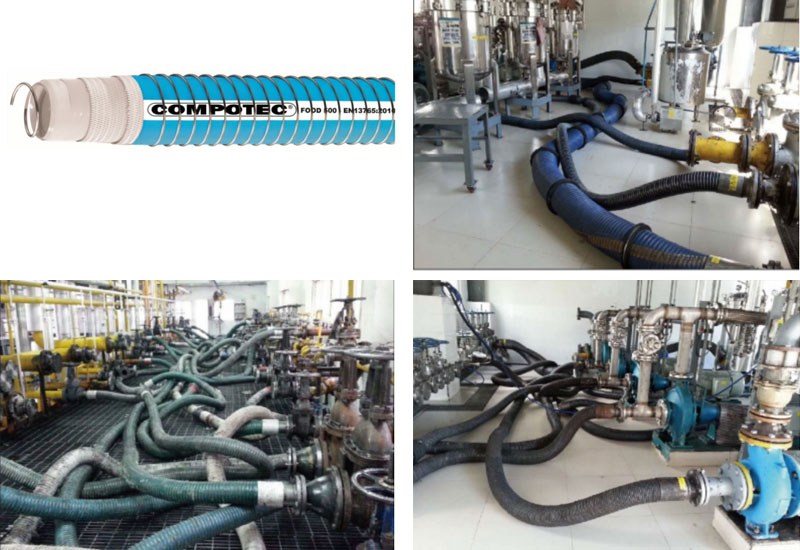

Scope of application

● Used for transporting various liquid food.

Food Grade Composite Flexible Hose
