Product parameters

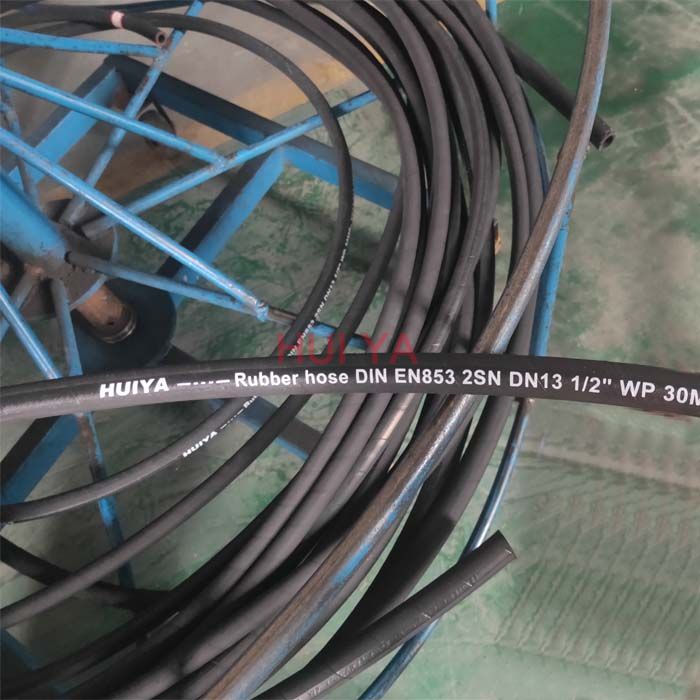

EN 853 2SN hydraulic rubber hose is reinforced by two braids of high tensile steel wire to support high working pressures up to 6020 Psi at 3/16" I.D. Oil resistant tube and ozone resistant, abrasion resistant cover contribute for long-term service life. It can be applied for conveying water and petroleum-based hydraulic fluids within -40 °C to +100 °C (max 120 °C intermittent).
They are applied for outside applications such as offshore, forestry, factories and similar applications where abrasion resistance should be high.
Tube: Inner tube in high quality synthetic rubber compounds.
Reinforcement: Two high tensile steel wire braid.
Cover: Abrasion and weather resistant synthetic rubber.
Temperature: -40 °C to +100 °C (-40 °F to +212 °F).
| EN 853 2ST /2SN Steel Wire Reinforced Hydraulic Rubber Hose Technical Specification | ||||||||||||||||||
| PART NO. | Size | SAE Size | ID | Reinforcement W.D | OD | MaxW.P | Proof Pressure | Min B.P | Min B.R | Weight | ||||||||
| A | AT | |||||||||||||||||
| mm | inch | dash | min | max | min | max | min | max | max | MPa | Psi | MPa | Psi | MPa | Psi | mm | kg/m | |
| EN8532SN-0005 | 5 | 3/16 | -3 | 4.6 | 5.4 | 10.6 | 11.6 | 15.1 | 16.7 | 14.1 | 41.5 | 6020 | 83 | 12035 | 165 | 23925 | 90 | 0.32 |
| EN8532SN-0006 | 6.3 | 1/4 | •4 | 6.2 | 7.0 | 12.1 | 13.3 | 16.7 | 18.3 | 15.7 | 40 | 5800 | 80 | 11600 | 160 | 23200 | 100 | 0.36 |
| EN8532SN-0008 | 8 | 5/16 | -5 | 7.7 | 85 | 13.7 | 14.9. | 18.3 | 19.9 | 17.3 | 35 | 5075 | 70 | 10150 | 140 | 20300 | 115 | 0.45 |
| EN8532SN-0010 | 10 | 3/8 | -6 | 9.3 | 10.1 | 16.1 | 17.3 | 20.6 | 22.2 | 19.7 | 33 | 4785 | 66 | 9570 | 132 | 19140 | 130 | 0.54 |
| EN8532SN-0013 | 12.5 | 1/2 | -8 | 12.3 | 135 | 19.0 | 20.6 | 23.8 | 25.4 | 23.0 | 27.5 | 3990 | 55 | 7975 | 110 | 15950 | 180 | 0.68 |
| EN8532SN-0016 | 16 | 5/8 | -10 | 15.5 | 16.7 | 22.2 | 23.8 | 27.0 | 28.6 | 26.2 | 25 | 3625 | 50 | 7250 | 100 | 14500 | 200 | 0.80 |
| EN8532SN-0019 | 19 | 3/4 | -12 | 1&6 | 19B | 26.2 | 27.8 | 31.0 | 32.6 | 30.1 | 21.5 | 3120 | 43 | 6235 | 85 | 12325 | 240 | 0.94 |
| EN8532SN-0025 | 25 | 1 | -16 | 25.0 | 26.4 | 34.1 | 35.7 | 38.5 | 40.9 | 38.9 | 16.5 | 2390 | 32.5 | 4710 | 65 | 9425 | 300 | 1.35 |
| EN8532SN-0032 | 31.5 | 1 1/4 | -20 | 31.4 | 33.0 | 43.3 | 45.7 | 49.2 | 52.4 | 49.5 | 12.5 | 1810 | 25 | 3625 | 50 | 7250 | 420 | 2.15 |
| EN8532SN-0038 | 38 | 1 1/2 | •24 | 37.7 | 393 | 49.6 | 52.0 | 55.6 | 58.8 | 55.9 | 9 | 1305 | 18 | 2310 | 36 | 5220 | 500 | 2.65 |
| EN8532SN-0051 | 51 | 2 | -32 | 50.4 | 52.0 | 62.3 | 64.7 | 68.2 | 71.4 | 68.6 | 8 | 1160 | 16 | 2320 | 32 | 4640 | 630 | 3.42 |
