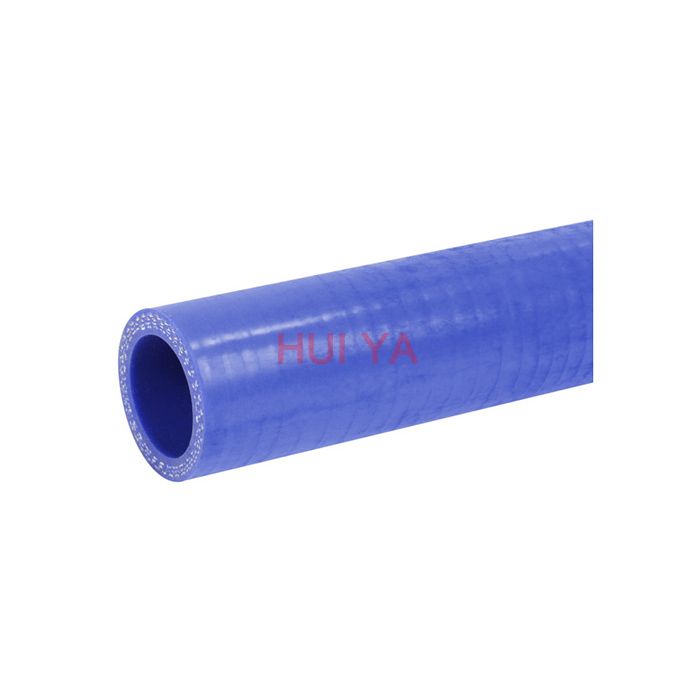

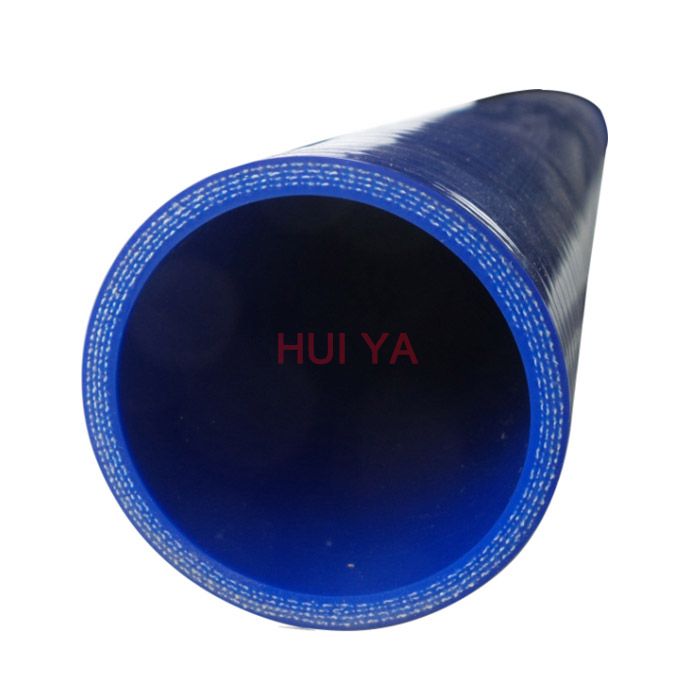

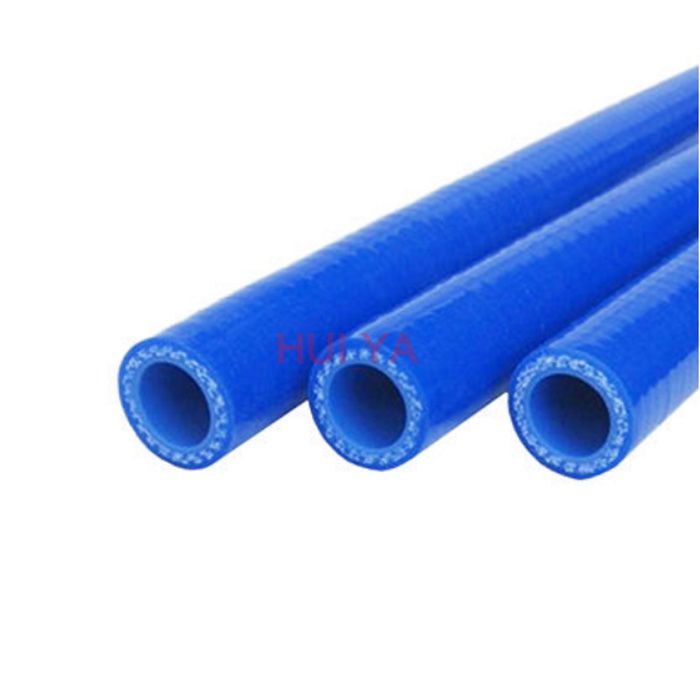

Straight Silicone Hose

Owing to high quality raw materials and fabrics, our straight silicone hoses with small diameters enjoy excellent flexibility and can make various bend radius. It is frequently used for water connecting, breathers, heater matrix, etc. Bigger diameters are allowed to cut to any lengths.

Inquire Now None

Product parameters

Construction:

Inner: Silicone or Fluorosilicone

Cover: Silicone

Reinforcement ply: 4 plies

Reinforcement: Polyester/Aramid/Glass fiber

Temperature: -40℃ to +200℃

Product Features

1. Translucent natural silicone tube color for visual contact with the flow of liquid.

2. Resilient, stretchable silicone tubing material, and resistant to compression set.

3. Flexible silicone hoses are odorless, tasteless, and inert.

4. Good electrical and weather-ability properties - resistant to U.V., ozone, gases, and moisture.

Scope of application

1. Coolant hose for individual machinery and equipment.

2. Pipes and connecting hose for food and beverage processing.

3. Medical equipment.

4. Chemical and adhesive filling systems.

5. Thin wall permeable hose for diffusion membranes.

6. Alternative hardness for hose wall and top coating.

7. Special elastomer formulation for custom applications.

Specification - straight silicone hose
Item No.	I.D.		O.D.	Thickness	Burst Pressure	Length
Item No.	inch	mm	mm	mm	Mpa	mm
HYSSH001	1/4	6	16	5	3.5	1000
HYSSH002	3/8	10	20	5	2.9	1000
HYSSH003	1/2	13	23	5	2.7	1000
HYSSH004	5/8	16	26	5	2.4	1000
HYSSH005	3/4	19	29	5	2.2	1000
HYSSH006	7/8	22	32	5	2.1	1000
HYSSH007	1	25	35	5	2	1000
HYSSH008	1-1/2	38	48	5	1.5	1000
HYSSH009	2	51	61	5	1.2	1000
HYSSH010	2-1/2	63	73	5	1	1000
HYSSH011	3	76	86	5	0.8	1000
HYSSH012	3-1/2	89	99	5	0.6	1000
HYSSH013	4	102	112	5	0.5	1000
Note	The thickness, length and color can be customized as your request.
