Steam Hose

Heat resistant hose rubber pipe used for discharging steam.

This high temperature flexible rubber hose (EPDM rubber hose) designed for service with superheated. Steam in heat control, fire prevention, etc. In many industries at max pressure of 17 bar (250 psi).

Product parameters

Steam Hose

Steam hose:Mandrel built high pressure wire reinforced steam hose designed for service with superheated steam in heat control, fire prevention etc. The max pressure can reach 17 bar/250 psi.

Temperature range:-40℃ to +236℃

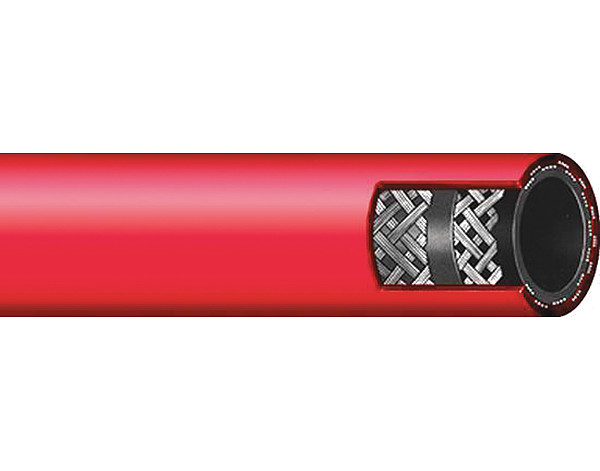

Inner:Black, smooth, EPDM rubber specially compounded to withstand super heated steam.

Reinforcement:Plies of steel wire cord

Cover:Red or black smooth(wrapped finish) EPDM rubber with excellent resistance to high temperature, weathering, abrasion and ageing; it is pin-pricked to prevent separation.

Inner DiameterOuter DiameterWorking PressureBurst PressureWeightBending Radius
mminchmminchbarpsibarpsiKg/mlbs/ftmm
131/22511725017025000.530.3691
193/4321-7/321725017025000.680.46133
251391-29/641725017025000.900.62175
321-1/4461-13/161725017025001.300.87224
381-1/2542-1/81725017025001.601.10266
512672-41/641725017025002.201.51357
632-1/2833-5/161725017025003.802.61445
763953-13/161725017025004.663.20532
10241244-7/81725017025006.504.46714
