SAE 100R2 hydraulic rubber hose

2-wire braid high pressure hydraulic hose is often found in mobile equipment including farm tractor, dump truck and in-plant hydraulic equipment.

HY-SAE100 (R1-R19)hydraulic rubber hose specifications.pdf

Inquire Now Next Product

Product parameters

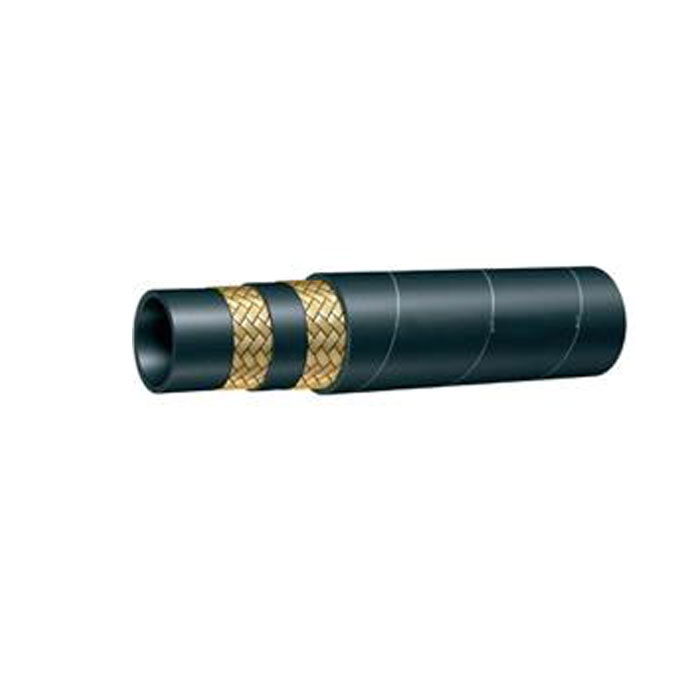

2-wire braid high pressure hydraulic hose is often found in mobile equipment including farm tractor, dump truck and in-plant hydraulic equipment. SAE 100R2AT hydraulic hose has three parts - excellent oil resistance nitrile tube, good weather and petroleum products resistance neoprene cover and double high-tensile wire braid reinforcement. This petroleum oil hose is for outdoor working environments including offshore, forestry, construction and mining where high abrasion resistance is required. Petroleum- and water based hydraulic fluids with high pressure can pass through the inner tube smoothly and freely without producing excessive heat and leak.

Tube: Oil resistant synthetic rubber

Reinforcement: Two layers of braided high tensile steel wire

Cover: Abrasion and weather resistant synthetic rubber

Scope of application

This hose is used for petroleum base hydraulic fluids within a temperature range of -40℃~+100℃.

Item Code	HOSE SIZE I.D			R.O.D	O.D	MAX W.P		MIN.B.P		MIN.B.R	W.T
Item Code	DN	dash	Inch	mm	mm	bar	psi	bar	psi	mm	kg/m
HYR2-5	5	-3	3/16	11.3	11.3	415	6010	1650	23920	89	0.32
HYR2-6	6	-4	1/4	12.7	14.7	400	5800	1600	23200	100	0.36
HYR2-8	8	-5	5/16	14.3	16.3	350	5070	1400	20300	114	0.40
HYR2-10	10	-6	3/8	16.7	18.7	330	4780	1320	19140	127	0.51
HYR2-12	12	-8	1/2	19.8	21.8	275	3980	1100	15950	178	0.62
HYR2-16	16	-10	5/8	23.0	25.0	250	3620	1000	14500	200	0.72
HYR2-19	19	-12	3/4	27.0	29.0	215	3110	860	12470	240	0.96
HYR2-25	25	-16	1	34.8	36.8	165	2390	650	9420	300	1.32
HYR2-31	31	-20	1 1/4	44.3	47.0	125	1810	500	7250	419	1.97
HYR2-38	38	-24	1 1/2	50.7	53.4	90	1300	360	5220	500	2.27
HYR2-51	51	-32	2	63.5	66.2	80	1160	320	4640	630	3.12
