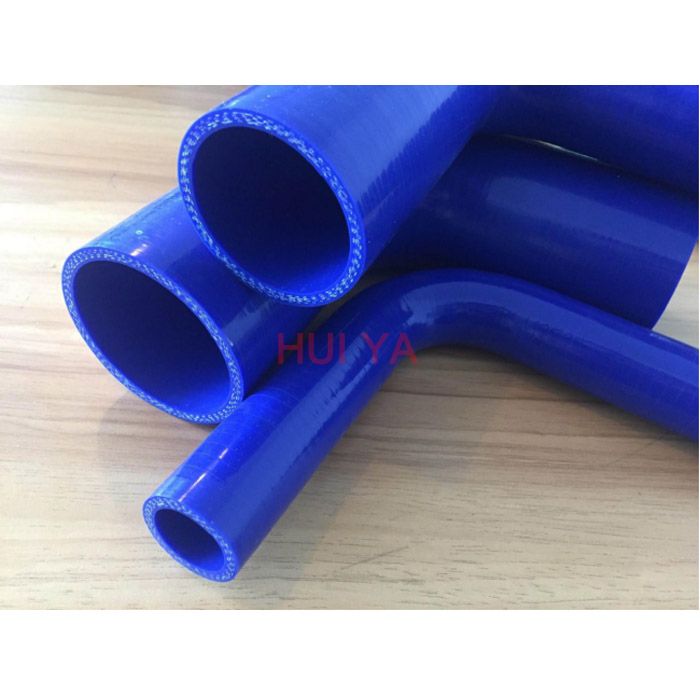

Elbow Silicone Hose

Elbow silicone hose, reinforced by polyester, is very effective for carrying air, water, coolant, or sprayed by small amount of oil mist. It is often be found in vehicle cooling system like cold sides of inter-cooler air hoses and general industrial application.

Inquire Now Next Product

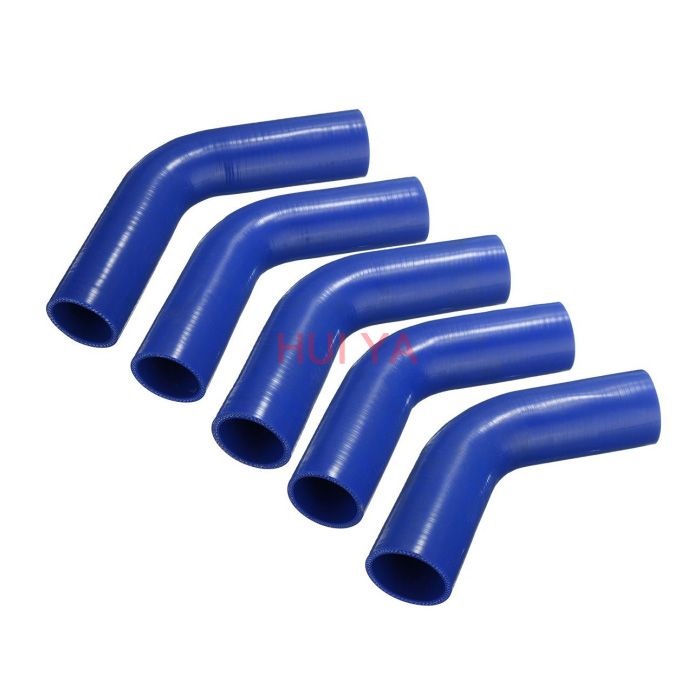

Specification - 45 degree elbow silicone hose
Item No.	I.D.		O.D.	Thickness	Burst Pressure	Leg Length
Item No.	inch	mm	mm	mm	Mpa	mm
HY45ESH01	1/4	6	16	5	3.5	100*100
HY45ESH02	3/8	10	20	5	2.9	100*100
HY45ESH03	1/2	13	23	5	2.7	100*100
HY45ESH04	5/8	16	26	5	2.4	100*100
HY45ESH05	3/4	19	29	5	2.2	100*100
HY45ESH06	7/8	22	32	5	2.1	100*100
HY45ESH07	1	25	35	5	2	100*100
HY45ESH08	1-1/2	38	48	5	1.5	100*100
HY45ESH09	2	51	61	5	1.2	100*100
HY45ESH10	3	76	86	5	0.8	100*100
HY45ESH11	3-1/2	89	99	5	0.6	100*100
HY45ESH12	4	102	112	5	0.5	100*100
Note	The thickness, length and color can be customized as your request.

Specification - 60 degree elbow silicone hose
Item No.	I.D.		O.D.	Thickness	Leg Length
Item No.	inch	mm	mm	mm	mm
HY60ESH01	3/4	19	29	5	102*102
HY60ESH02	1	25	35	5	102*102
HY60ESH03	1-1/4	32	42	5	102*102
HY60ESH04	1-3/8	35	45	5	102*102
HY60ESH05	1-1/2	38	48	5	102*102
HY60ESH06	2	51	61	5	102*102
HY60ESH07	2-1/2	63	73	5	102*102
HY60ESH08	3	76	86	5	102*102
Note	The thickness, length and color can be customized as your request.

Specification - 90 degree elbow silicone hose
Item No.	I.D.		O.D.	Thickness	Burst Pressure	Leg Length
Item No.	inch	mm	mm	mm	Mpa	mm
HY90ESH01	1/4	6	16	5	3.5	100*100
HY90ESH02	3/8	10	20	5	2.9	100*100
HY90ESH03	1/2	13	23	5	2.7	100*100
HY90ESH04	5/8	16	26	5	2.4	100*100
HY90ESH05	3/4	19	29	5	2.2	100*100
HY90ESH06	7/8	22	32	5	2.1	100*100
HY90ESH07	1	25	35	5	2	100*100
HY90ESH08	1-1/2	38	48	5	1.5	100*100
HY90ESH09	2	51	61	5	1.2	100*100
HY90ESH10	3	76	86	5	0.8	100*100
HY90ESH11	3-1/2	89	99	5	0.6	100*100
HY90ESH12	4	102	112	5	0.5	100*100
Note	The thickness, length and color can be customized as your request.

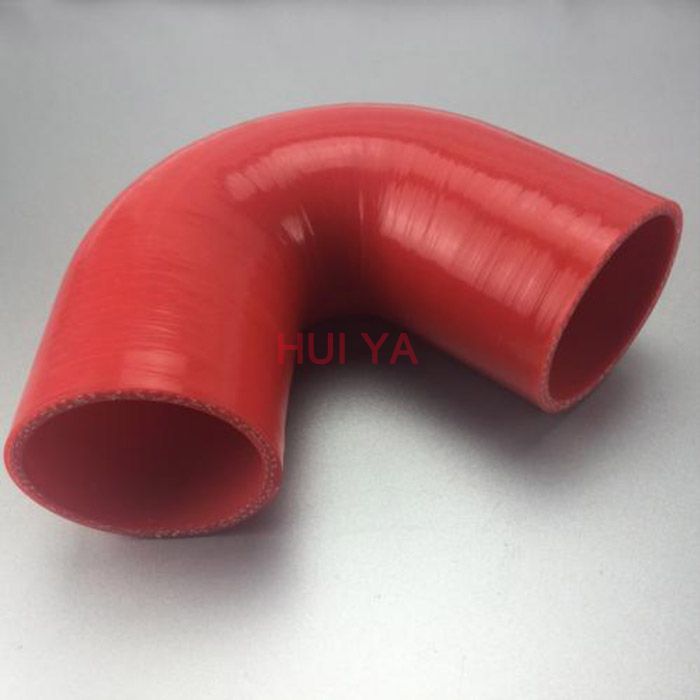

Specification - 90 degree elbow silicone hose
Item No.	I.D.		O.D.	Thickness	Burst Pressure	Leg Length
Item No.	inch	mm	mm	mm	Mpa	mm
HY135ESH01	1/4	6	16	5	3.5	100*100
HY135ESH02	3/8	10	20	5	2.9	100*100
HY135ESH03	1/2	13	23	5	2.7	100*100
HY135ESH04	5/8	16	26	5	2.4	100*100
HY135ESH05	3/4	19	29	5	2.2	100*100
HY135ESH06	7/8	22	32	5	2.1	100*100
HY135ESH07	1	25	35	5	2	100*100
HY135ESH08	1-1/2	38	48	5	1.5	100*100
HY135ESH09	2	51	61	5	1.2	100*100
HY135ESH10	3	76	86	5	0.8	100*100
HY135ESH11	3-1/2	89	99	5	0.6	100*100
HY135ESH12	4	100	110	5	0.5	100*100
Note	The thickness, length and color can be customized as your request.

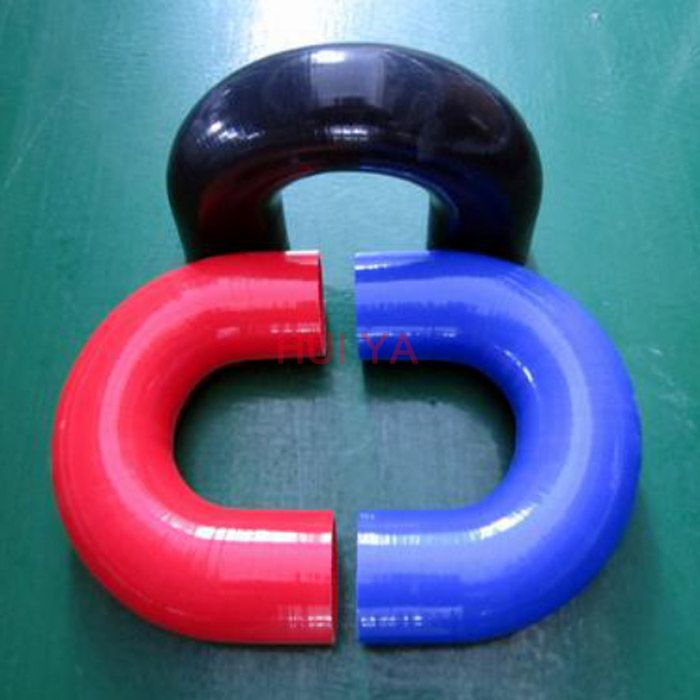

Specification - 180 degree elbow silicone hose
Item No.	I.D.		O.D.	Thickness	Leg Length
Item No.	inch	mm	mm	mm	mm
HY180ESH01	5/16	8	18	5	100*100
HY180ESH02	3/8	10	20	5	100*100
HY180ESH03	1/2	13	23	5	100*100
HY180ESH04	5/8	16	26	5	100*100
HY180ESH05	3/4	19	29	5	100*100
HY180ESH06	1	25	35	5	100*100
HY180ESH07	1-1/4	32	42	5	100*100
HY180ESH08	1-1/2	38	48	5	100*100
HY180ESH09	1-3/4	45	55	5	100*100
HY180ESH10	2	51	61	5	100*100
HY180ESH11	2-1/2	64	74	5	100*100
HY180ESH12	3	76	86	5	100*100
Note	The thickness, length and color can be customized as your request.
