BOP Hose

5, 000psi W.P. – 10, 000 psi Test-15, 000 Minimum Burst

Data Sheet of 16D hose.pdf


Product Features

Recommended For:

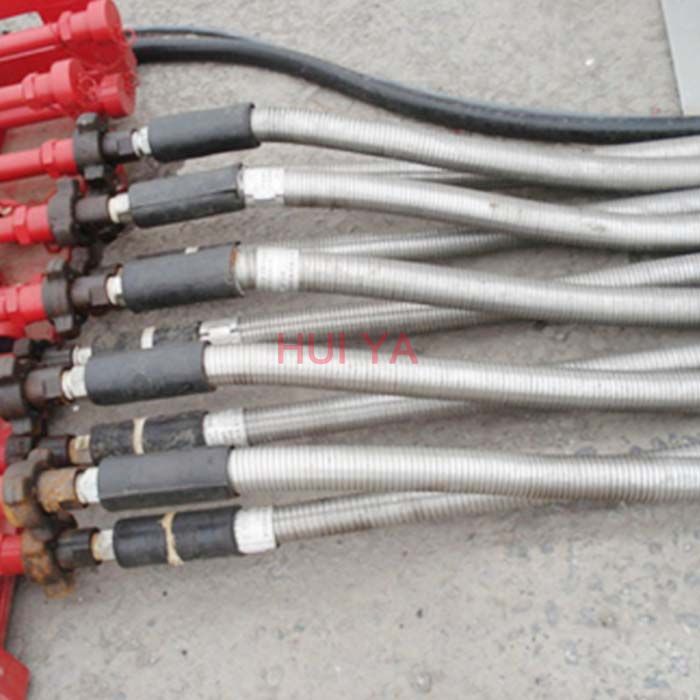

BOP Control Hose/Bop Well Control Hose

The BOP control hose (BOP hydraulic control line) for the BOP system is made of high quality components and is capable of operating in harsh oil field conditions. These hoses are designed to maintain the required operating pressure and to ensure that the BOP control system continues to operate normally in the event of the most severe fire.

Bop control hose with high pressure, high temperature, fire resistance and other characteristics. Manufactured to API 16D, the blowout preventer hose is ideal for high pressure hydraulic applications on drilling control equipment, capable of withstanding rated operating pressure of at least 5 minutes at 1300°F(700°C) flame temperature.

Certification/Standards:

API Spec 16D--ISO 14693

Recommended For:

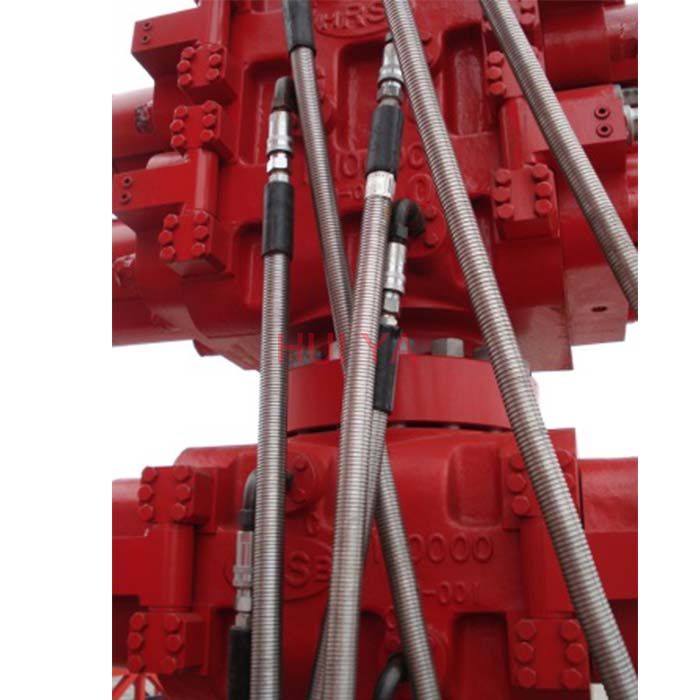

When primary well control has been lost, it becomes the function of the BOP to operate and seal the well to prevent a blowout. All equipment must be able to operate under fire exposure conditions.

Flameshield 5000 is a hydraulic control hose that operates at 5, 000psi whilst exposed directly to fire for a minimum of 5 minutes ensuring all well control operations can be effected in an emergency situation.

Tube:

Modified Nitrile. Black.

Reinforcement:

Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.

Cover:

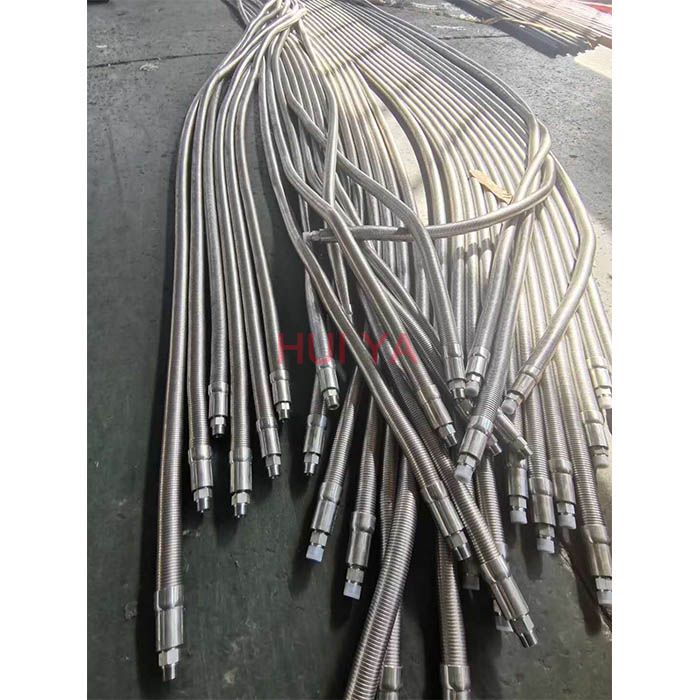

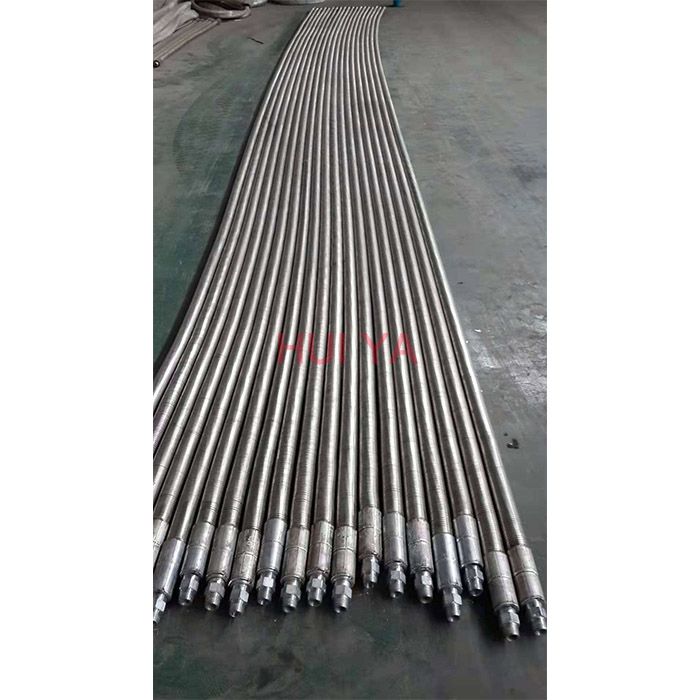

Fire resistant, rubber cover, stainless steel armored to handle abrasion, corrosion, cutting, gouging, oil and weather.

Couplings:

Crimped couplings with over-ferrule fire protection.

Temperature:

-40°C to +121°C

Options:

Accessories such as API 16D quick connector, self-sealing union and exterior armor to protect hoses against extreme environmental damage are available upon request.

Test:

Each hose is tested at 10000psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.

SPECIFICATIONS:

BOP control hydraulic hoses are made with 1/4" to 2" inside diameter and 5000 psi working pressure at ambient temperature. Four or six stainless steel wire spirals provides high pressure.

Nominal IDOD of hose assemblyWorking pressureMin burst pressureMin bending radius
Fire-resistant working time at 750℃(min)
mmin(mm)(MPa)(MPa)(mm)threadNormal stateLimit
131/2″3735105210NPT LP525
4370175
4770175
193/4″4435105280
5070175
251″5035105360
5670175
3211/4″5635105460
6270175
3811/2″6335105560
6970175
