Mud Cement Hose

CEMENTING ROTARY HOSE W.P 10,000 psi

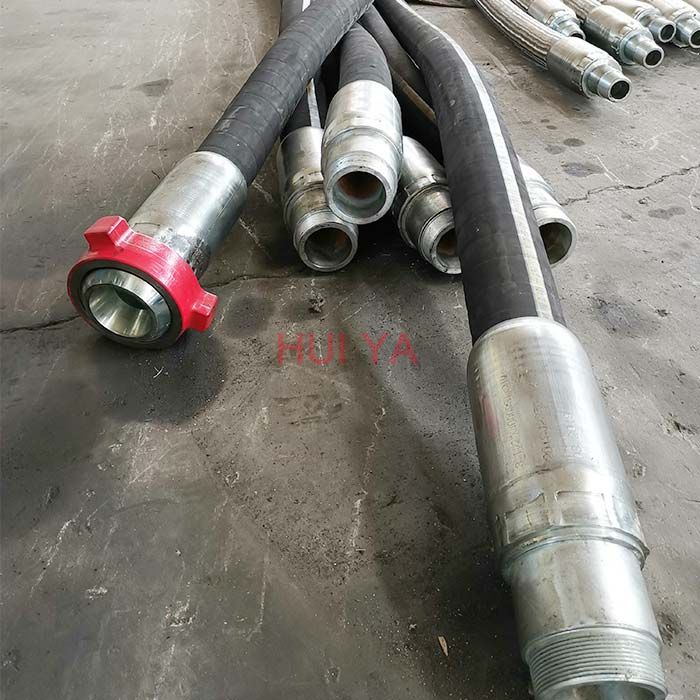

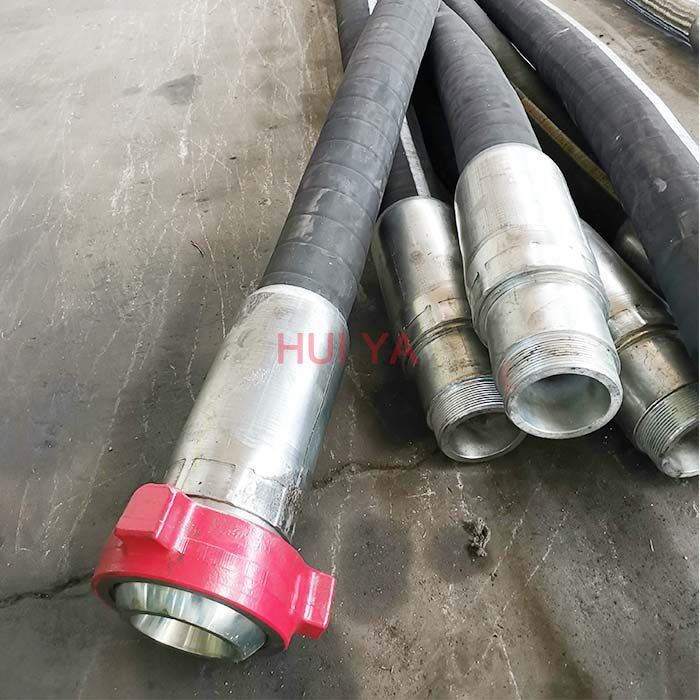

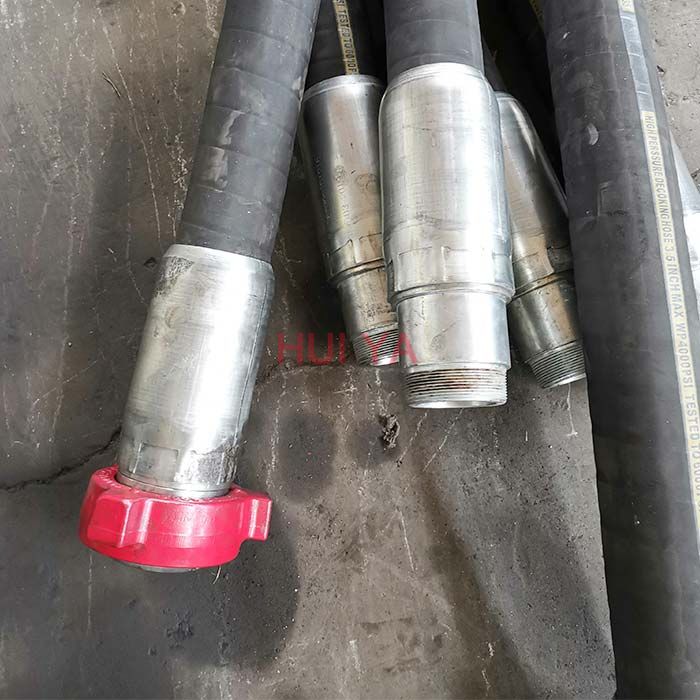

10K Mud/Cementing Hose

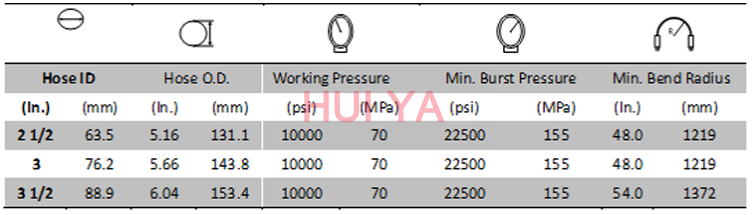

10,000 PSI W.P \ 15,000 PSI TEST\25,000 PSI BURST
•Certification: API 7K ISO 14693-ABS APPROVAL

Construction：

Material: Modified Nitrile

Size: 2- 1/2 - 4 inch

Imprint: Customized

• Reinforcement: Multiple high strength steel cables

• Cover: Modified nitrile. Black. Specially designed wear resistant, corrosion resistant, cutting resistant,  oil resistant, weather resistant rubber.
• Tube: Oil resistant for petroleum drilling fluids

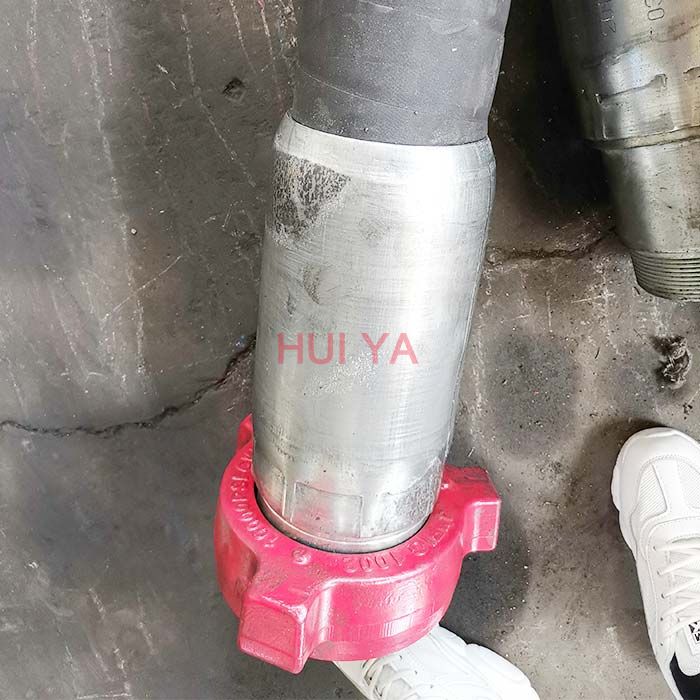

• End Fittings: API male nipples, threaded or buttweld hammer
unions,  API flanges and other special connections.
• Maximum Length: 130 feet/40 meter
• Operating Temperatures: -20°C to 121°C
• Options: Available with S.S. armor and fire protection.
Typical Application
• Used as a flexible connection between the cementing pump and maniford and cementing head for  conveyance of cement slurries at high pressure.
• Oilfield, construction, mining and high performance
industrial equipment.
10K rotary and vibrator hose is manufactured with the highest quality material to handle the tough
drilling applications of industry.

Rotary Drilling & Vibrator Hoses with swaged coupling

Mud delivery and suction hose

· API Spec. 7K

· Specification:

· API Spec. 7K

· Specification:

 Full range of couplings are available, such as hammer unions, flanges, camlock, male thread etc.

Options:

Accessories such as safety clamps, hose lift eyes and stainless steel armor are available upon request.
Test:

Each hose is tested at 15000psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose.
