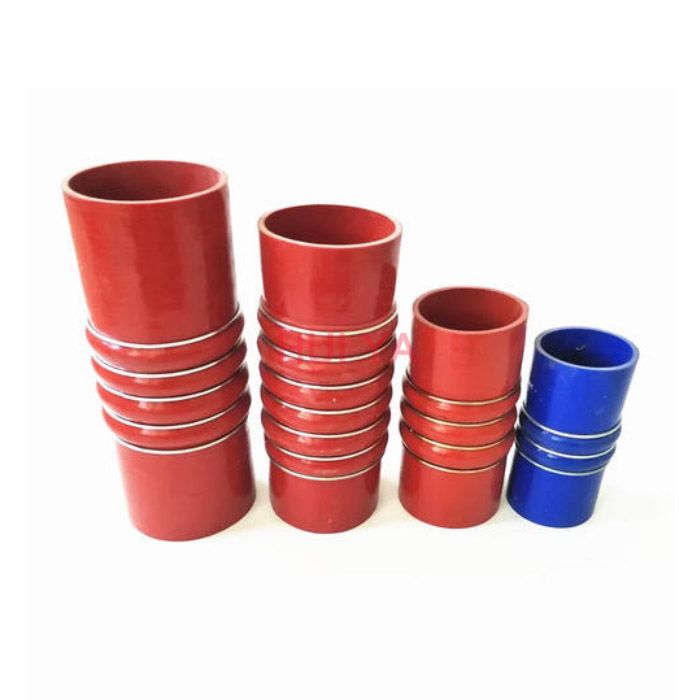

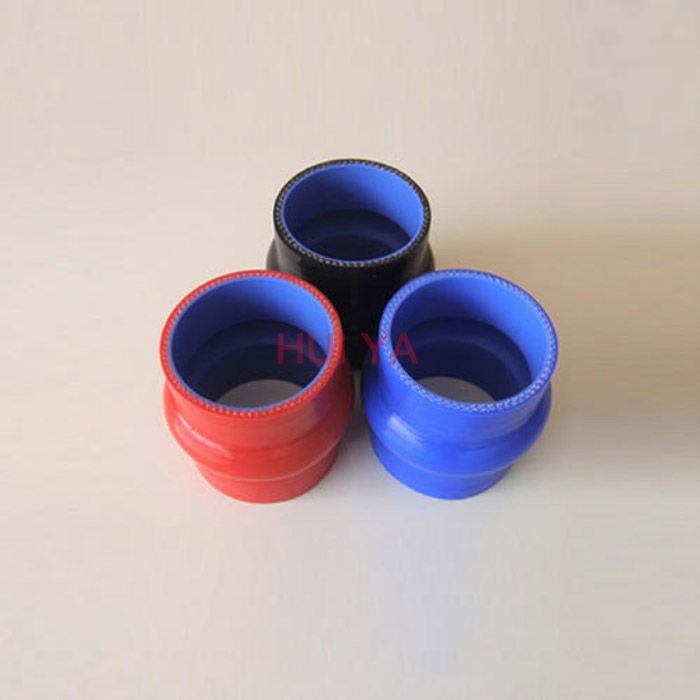

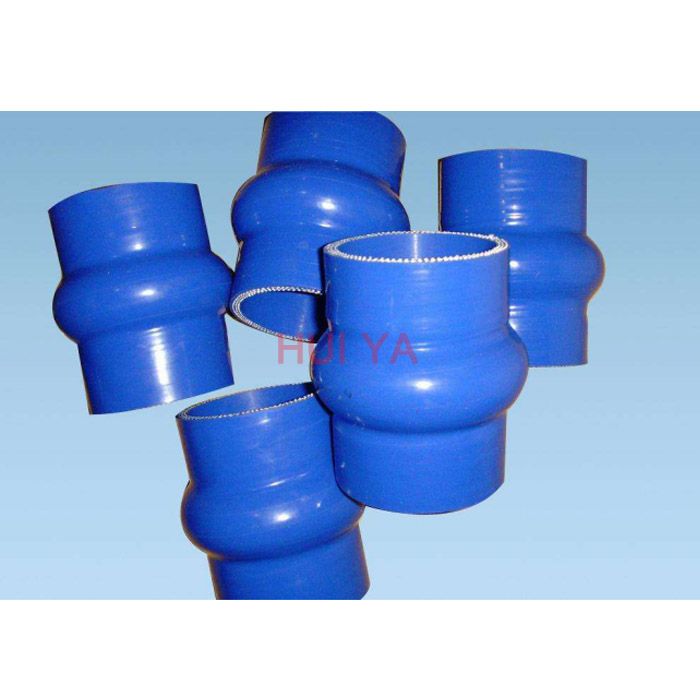

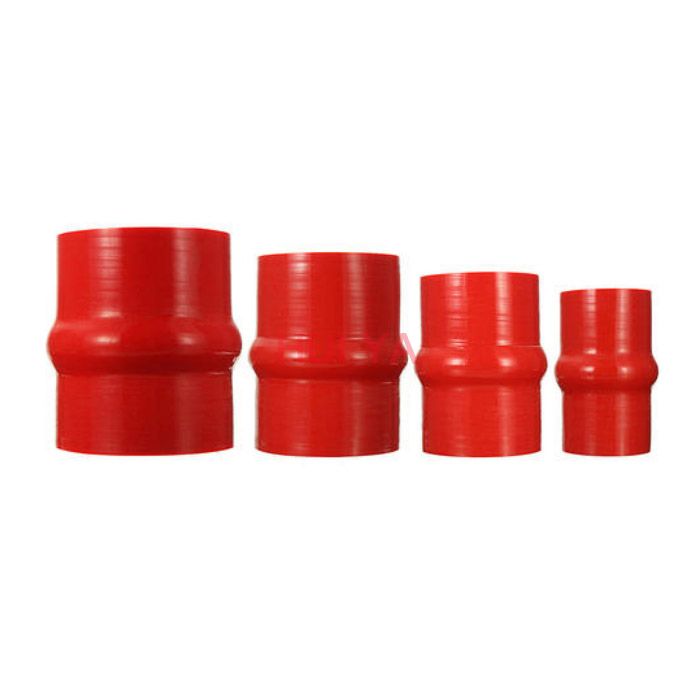

Silicone hump hose has a bulge in it that is designed to allow the joint to flex. Silicone hump hose allows for expansion and movement between pipes. By allowing a little flex in things you have less chance of pulling connections loose and there is less stress on the rest of piping. They also allow for slight misalignment between pipes.
Product parameters
Inner: Silicone or Fluorosilicone
Cover: Silicone
Reinforced ply: 3 or 4 plies
Reinforcement: Polyester/Aramid/Glass fiber
Scope of application
| Specification - silicone hump hose | |||||
| Item No. | I.D. | O.D. | Thickness | Leg Length | |
| inch | mm | mm | mm | mm | |
| HYSHH01 | 1-1/4 | 32 | 42 | 5 | 200 |
| HYSHH02 | 1-1/2 | 38 | 48 | 5 | 200 |
| HYSHH03 | 1-3/4 | 45 | 55 | 5 | 200 |
| HYSHH04 | 2 | 51 | 61 | 5 | 200 |
| HYSHH05 | 2-1/2 | 63 | 73 | 5 | 200 |
| HYSHH06 | 3 | 76 | 86 | 5 | 200 |
| HYSHH07 | 3-1/2 | 89 | 99 | 5 | 200 |
| HYSHH08 | 4 | 102 | 112 | 5 | 200 |
| HYSHH09 | 4-1/2 | 114 | 124 | 5 | 200 |
| HYSHH10 | 5 | 127 | 137 | 5 | 200 |
| HYSHH11 | 10 | 250 | 270 | 10 | 500 |
| HYSHH12 | 14 | 350 | 370 | 10 | 500 |
| Note | The thickness, length and color can be customized as your request. | ||||
