Flanged rubber pipe between the riser and manifold or around the ball joint of offshore drilling rigs, specially designed to withstand high pressure.

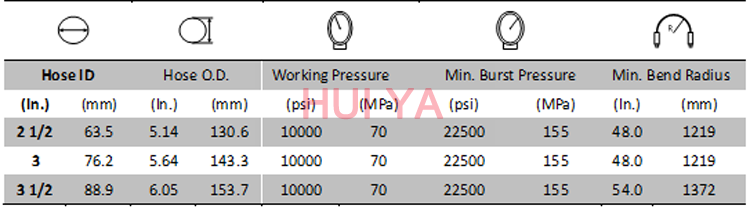

Product parameters
10,000psi W.P. – 15, 000 psi Test-22, 500 psi Minimum Burst
Certification / Standards:
API Spec 16C--ISO 14693
Recommended For:
Flexible hose between the riser and manifold or around the ball joint of offshore drilling rigs, specially designed to withstand high pressure.
Tube:
Modified Nitrile. Black. Resists abrasion, corrosion, oil, and up to 20% H2S.

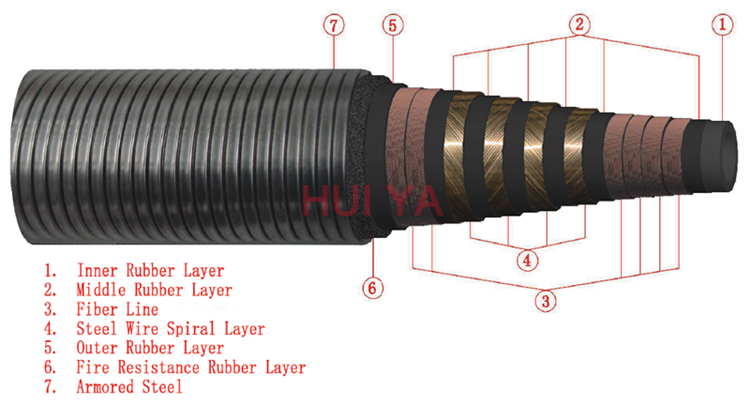

Reinforcement:
Multiple layers of textile fabric and steel cable, with one layer middle rubber placed between cable layers.
Cover:
Fire resistant rubber cover, stainless steel armored to handle abrasion, corrosion, cutting, gouging, oil and weather.
Couplings:
Swaged couplings. Full range of couplings are available, such as hammer unions, flanges, camlock, male thread, etc.
Temperature:
-4℉ to +200℉ (-20℃ to +93℃) continuous service.
Options:
Accessories such as safety clamps and hose lift eyes are available upon request.
Test:
