ONE LAYER WIRE BRAID, TEXTILE COVERED HYDRAULIC HOSE.
HY-SAE100 (R1-R19)hydraulic rubber hose specifications.pdf
Product parameters
ONE LAYER WIRE BRAID, TEXTILE COVERED HYDRAULIC HOSE

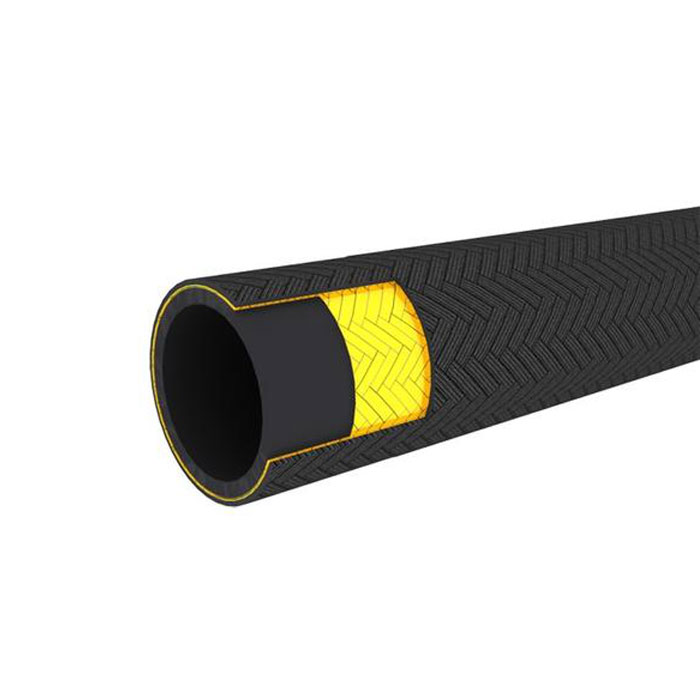

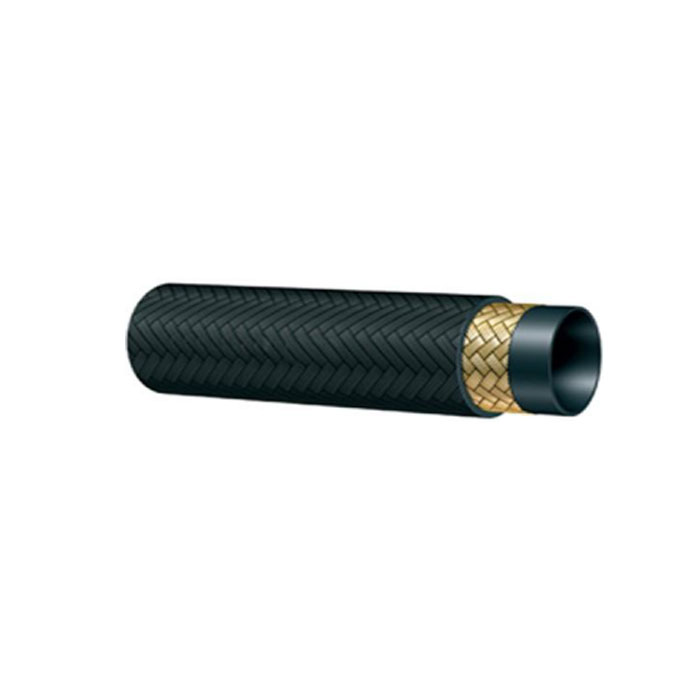

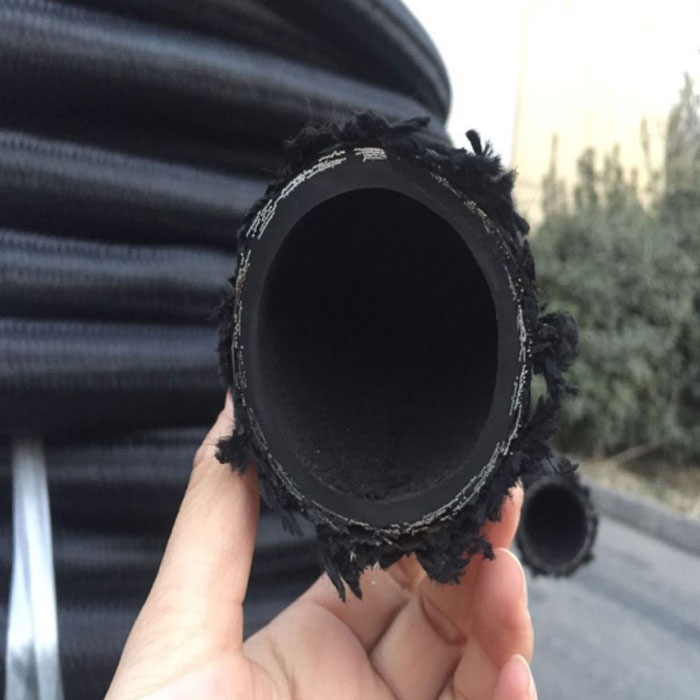

Construction:
INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: single layer of steel wire braided
COVER: single layer of fibre braided
| Item Code | Hose Size ID | Hose OD | Max. Working Pressure | Min. Bend Radius | Min. Burst Pressure | Weight | |||||
| in | DIN | in | mm | psi | mpa | in | mm | psi | mpa | kg/m | |
| HYR5-04 | 3/16 | 4.8 MM | 0.52 | 13.2 | 3000 | 20.7 | 3 | 76 | 12000 | 82.7 | 0.14 |
| HYR5-05 | 1/4 | 6.4 MM | 0.58 | 14.8 | 3000 | 20.7 | 3.38 | 86 | 12000 | 82.7 | 0.18 |
| HYR5-06 | 5/16 | 7.9 MM | 0.67 | 17.1 | 2250 | 15.5 | 4 | 102 | 9000 | 62.1 | 0.22 |
| HYR5-08 | 13/32 | 10.3 MM | 0.76 | 19.5 | 2000 | 13.8 | 4.62 | 117 | 8000 | 55.2 | 0.29 |
| HYR5-10 | 1/2 | 12.7 MM | 0.92 | 23.4 | 1750 | 12.1 | 5.5 | 140 | 7000 | 48.3 | 0.36 |
| HYR5-12 | 5/8 | 15.9 MM | 1.07 | 27.4 | 1500 | 10.3 | 6.5 | 165 | 6000 | 41.4 | 0.44 |
| HYR5-16 | 7/8 | 22.2 MM | 1.23 | 31.4 | 800 | 5.5 | 7.38 | 187 | 3200 | 22.1 | 0.47 |
| HYR5-20 | 1 1/8 | 28.6 MM | 1.5 | 38.1 | 625 | 4.3 | 9 | 229 | 2500 | 17.2 | 0.58 |
| HYR5-24 | 1 3/8 | 35 MM | 1.75 | 44.4 | 500 | 3.4 | 10.5 | 267 | 2000 | 13.8 | 0.72 |
| HYR5-32 | 1 13/16 | 46 MM | 2.22 | 56.4 | 350 | 2.4 | 13.25 | 337 | 1400 | 9.7 | 0.90 |
Product Features
1. high pressure resistance, no leakage
2. Anti-abrasion, Anti- UV, long working life
3. Non toxic, Without odor
4. Lightweight and flexible, easy to coil
Scope of application
Petroleum base and water base hydraulic fluids
TEMPERATURE RANGE:-40℃ (-104 ℉ ) to +100℃(+212 ℉)
