Transfer LPG Hose, Fiber/Steel spiral(braid) oil fabric oil/fuel/petrol hose.
HY-SAE100 (R1-R19)hydraulic rubber hose specifications.pdf
Product parameters

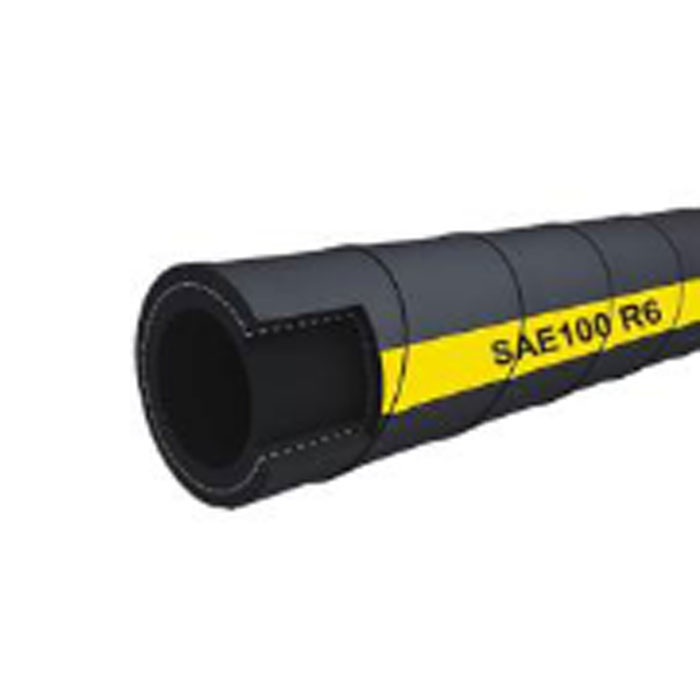

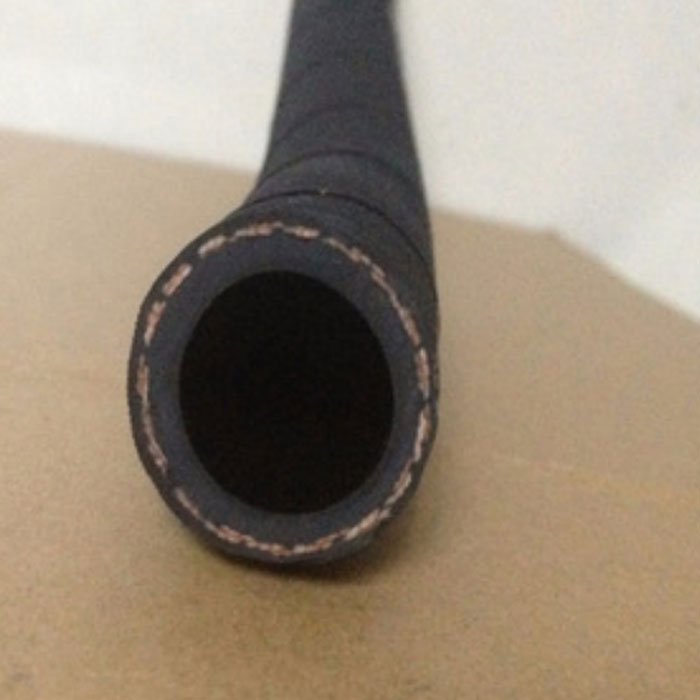

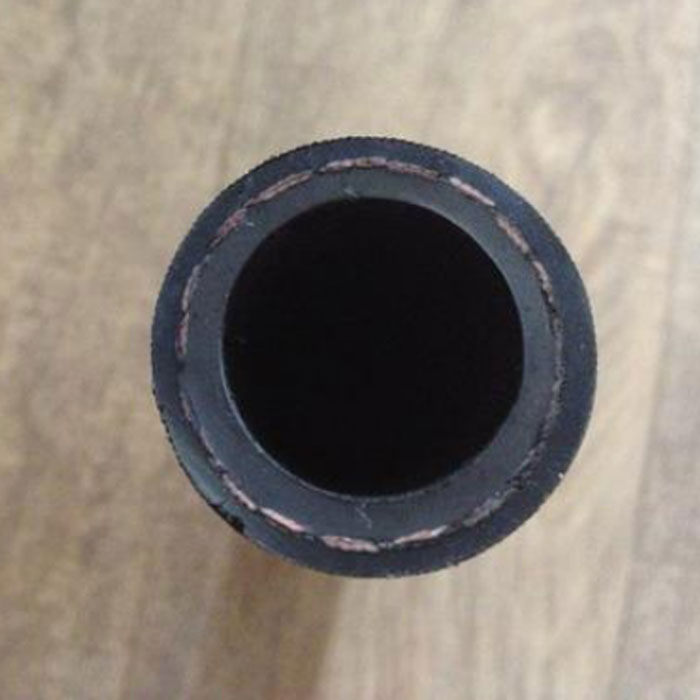

Transfer LPG Hose, Fiber spiral(braid) oil fabric oil/fuel/petrol hose
CONTINUOUS SERVICE TEMPERATURE RANGE: -40°F / +250°F; -40°C / +121°C
INSERT: SHF TYPE
TUBE: OIL RESISTANT SYNTHETIC RUBBER
REINFORCEMENT: ONE HIGH RESISTANCE TEXTILE BRAID
COVER: ENVIRONMENT RESISTANT SYNTHETIC RUBBER
APPLICABLE SPECS: SAE 100 R6 - EN 854 R6/1TE - ISO 4079-1 R6/1TE
| Item Code | HOSE SIZE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | dash | inch | mm | mm | bar | psi | bar | psi | mm | Kg/m | |
| HYR6-5 | 5 | -3 | 3/16" | - | 11.1 | 34 | 493 | 110 | 1972 | 51 | 0.10 |
| HYR6-6 | 6 | -4 | 1/4" | - | 12.7 | 28 | 406 | 110 | 1624 | 64 | 0.13 |
| HYR6-8 | 8 | -5 | 5/16" | - | 14.3 | 28 | 406 | 110 | 1624 | 76 | 0.15 |
| HYR6-10 | 10 | -6 | 3/8" | - | 15.9 | 28 | 406 | 110 | 1624 | 76 | 0.18 |
| HYR6-12 | 12 | -8 | 1/2" | - | 19.8 | 28 | 406 | 112 | 1624 | 102 | 0.26 |
| HYR6-16 | 16 | -10 | 5/8" | - | 23.0 | 24 | 348 | 100 | 1392 | 125 | 0.31 |
| HYR6-19 | 19 | -12 | 3/4" | - | 26.6 | 17 | 247 | 85 | 988 | 140 | 0.47 |
| HYR6-25 | 25 | -16 | 1" | - | 35.2 | 17 | 247 | 85 | 988 | 150 | 0.68 |
Product Features
The outer surface of the hose is smooth or fabric cover and the layer is made of the synthetic rubber with the property of anti-erosion by oil, which makes the hose good at oil-resistance. The burst pressure of the hose is four times or higher than the working pressure.
Scope of application
Be applicable to mechanical equipment convey gasoline, kerosene, diesel, engine oil, lubricant and other mineral oils with the temperature of -30℃-70℃.
