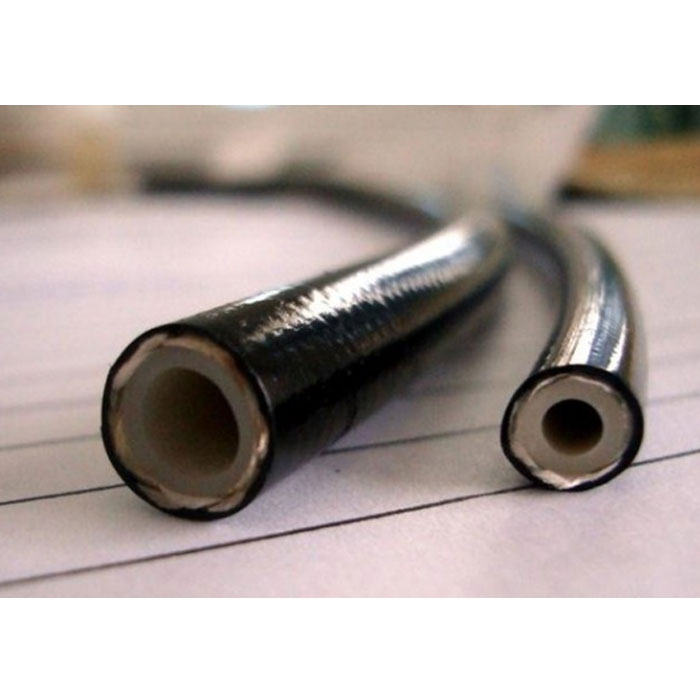

Oil resistant seamless thermoplastic Polyamide (PA) tube.
HY-SAE100 (R1-R19)hydraulic rubber hose specifications.pdf
Product parameters

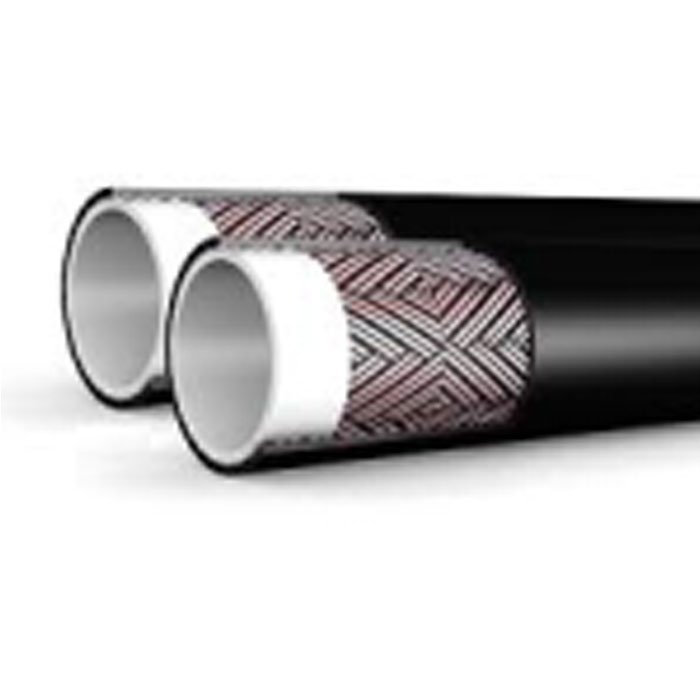

Construction:
INNER TUBE: Oil resistant seamless thermoplastic Polyamide (PA) tube.
REINFORCEMENT: one or two layer braided high tensile synthetic fibre.
COVER: Black high abrasion resistant polyurethane.
| Item Code | HOSE I.D | R.O.D | O.D | MAX W.P | MIN B.P | MIN B.R | W.T | ||||
| DN | Dash | inch | mm | mm | bar | psi | bar | psi | mm | kg/m | |
| HYR7-3 | 3 | -1 | 1/8" | - | 8.5 | 172 | 2500 | 689 | 10000 | 13 | 0.04 |
| HYR7-5 | 5 | -3 | 3/16" | - | 10.8 | 210 | 3040 | 840 | 12180 | 20 | 0.07 |
| HYR7-6 | 6 | -4 | 1/4" | - | 13.0 | 207 | 3000 | 827 | 12000 | 33 | 0.09 |
| HYR7-8 | 8 | -5 | 5/16" | - | 15.1 | 172 | 25000 | 689 | 100000 | 46 | 0.10 |
| HYR7-10 | 10 | -6 | 3/8" | - | 17.0 | 155 | 2250 | 621 | 9000 | 51 | 0.14 |
| HYR7-13 | 13 | -8 | 1/2" | - | 20.7 | 140 | 2030 | 560 | 8120 | 76 | 0.21 |
| HYR7-16 | 16 | -10 | 5/8" | - | 22.0 | 110 | 2000 | 440 | 8000 | 10 | 0.21 |
| HYR7-19 | 19 | -12 | 3/4" | - | 26.0 | 86 | 1250 | 345 | 5000 | 127 | 0.29 |
| HYR7-25 | 25 | -16 | 1" | - | 32.0 | 69 | 1000 | 276 | 4000 | 203 | 0.54 |
Product Features
SAE 100R7 non-conductive thermoplastic hydraulic hose is available for applications where there are potential to contact with high voltage sources. Nylon tube is compatible with petroleum, water and synthetic based hydraulic fluids for mobile equipment, lube lines, blowout preventers and hydraulic lifts where nonconductive character is necessary.
Temperature Range:-40°C To +93°C
Scope of application
R7 high pressure resin Hose is mainly used in medium pressure hydraulic oil, fuel oil, lubricating oil, phosphate chemicals, water, water base chemicals and other industrial gas; Water and water base-oil which the temperature can up to 93 C, argon, nitrogen, nitrogen dioxide and other industries gas.
